Produktdetails:
|
|
Herkunftsort: | CHINA |
---|---|
Markenname: | Sopto |
Zertifizierung: | ISO9001 / CE / RoHS |
Modellnummer: | SPT-P1RV3-L20D |
Zahlung und Versand AGB:
|
|
Verpackung Informationen: | 10 PC/Platte; 0.024kg/pcs |
Lieferzeit: | 3-5 Werktage |
Zahlungsbedingungen: | T/T; L/C; Paypal |
Detailinformationen |
|||
Abstand: | 20km | Datenrate: | Video-3G SDI |
---|---|---|---|
Stromversorgung: | Doppelenergieheißstecker | Produktname: | Transceiver SFP einzelnes RX |
Verbindungsstück: | LC | Schnittstelle: | Duplex-LC |
Markieren: | 20Km Sfp Faser-Optiktransceiver,20km Sfp Optiktransceiver,Faser-Optiktransceiver 3G SDI |
Produkt-Beschreibung

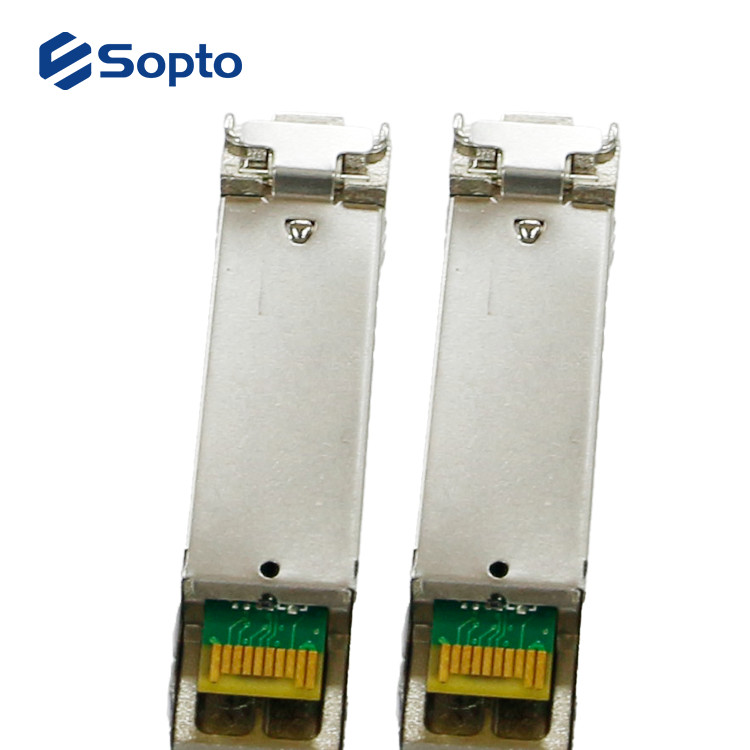

Heiß-steckbares Doppel-LC-Video SFP-Modul bis 40km mit RoHS-6 konform
Sind Video-Reihentransceivers SOPTOS Hochleistung, kosteneffektive Module für Simplex- oder Duplex-Video-Übertragungsanwendung über Einmodenfaser. Der Transceiver ist entworfenes,/, Datenraten von 50Mbps zu empfangen zu 2.97Gbps zu übertragen und ist speziell für robuste Leistung bestimmt. Sopto-Versorgungen Soem-Service und aus dritter Quelle (Cisco, Wacholderbusch, HP, Dell etc.) kompatible Faseroptiktransceivers.
Eigenschaften
l HD-SDI SFP Empfänger verfügbar
l SD-SDI SFP Empfänger verfügbar
l 3G-SDI SFP Empfänger verfügbar
l SMPTE 297-2006 kompatibel
l Metalleinschließung für niedrigere EMS
l PIN-Fotodetektor
l stützt pathologische Videomuster für SD-SDI, HD-SDI und 3G-SDI
l konform mit SFP MSA und SFF-8472 mit Duplex-LC-Behälter
l ohne DDM (Digital-Diagnosefunktionen)
l kompatibel mit RoHS
einzelne Stromversorgung des l +3.3V
l, das Gehäusetemperatur laufen lässt:
Standard: 0 zu +70°C
Anwendung
l SMPTE 297-2006 kompatible Elektrisch-zu-optische Schnittstellen
l HDTV/SDTV Service-Schnittstellen
Sopto-Faseroptiktransceiver übernahm die erste Führung, um das ISO9001 Qualitätssicherungssystem, die Anforderungen zu führen von Europäer EC, RoHs
Anwendungen
●Kompatible Elektrisch-zu-optische Schnittstellen SMPTE 297-2006.
●HDTV-/SDTVservice-Schnittstellen.
Einrichtungs-Informationen
PN | Datenrate (Gbps) | Abstand | Faser | Ausgangsleistungs (dBm) | Empfindlichkeit (dBm) | Schnittstelle | Temp. | DDM |
Normal | ||||||||
SPT-P13V3-10D | 3 | 10km | Inspektion | -7 | 0 | -22 | Duplex LC | 0 zu 70℃ | D |
SPT-P13V3-20D | 3 | 20km | Inspektion | -6 | 0 | -22 | Duplex LC | 0 zu 70℃ | D |
SPT-P55V3-40D | 3 | 40km | Inspektion | -2 | 3 | -22 | Duplex LC | 0 zu 70℃ | D |
Doppel-Tx | ||||||||
SPT-P2T13V3-20D | 3 | 20km | Inspektion | -6 | 0 | Null | Duplex LC | 0 zu 70℃ | D |
SPT-P2T13V3-40D | 3 | 40km | Inspektion | -2 | 3 | Null | Duplex LC | 0 zu 70℃ | D |
Einzelnes Rx | ||||||||
SPT-P1RV3-L20D | 3 | 20km | Inspektion | Null | -22 | Simplex-LC | 0 zu 70℃ | D |
Doppel-Rx | ||||||||
SPT-P2RV3-L40D | 3 | 40km | Inspektion | Null | -22 | Simplex-LC | 0 zu 70℃ | D |
